DRC Pro Fork Top Cap Wrench

Pro Fork Top Cap Wrench

SPECIFICATIONS:

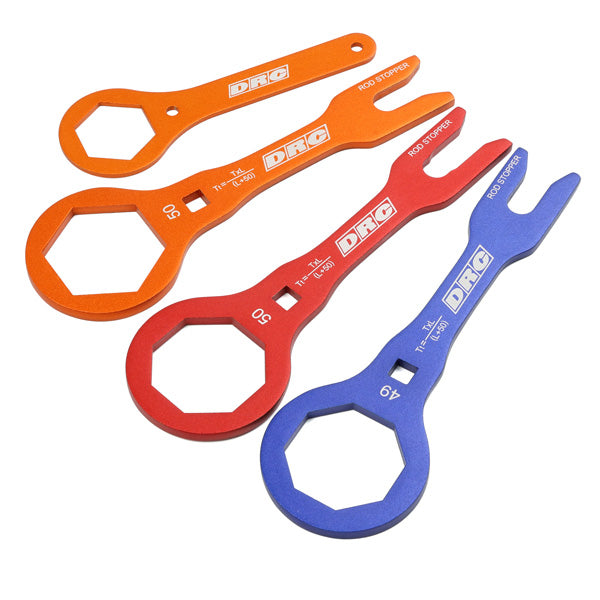

• Aluminum front fork top cap wrench.
  - Allows to disassemble and assemble in one cycle job with a wrench and rod stopper combined tool.
  - The closed design wrench grabs the top cap tightly.
  - Available for Φ14mm rod (D59-37-171)

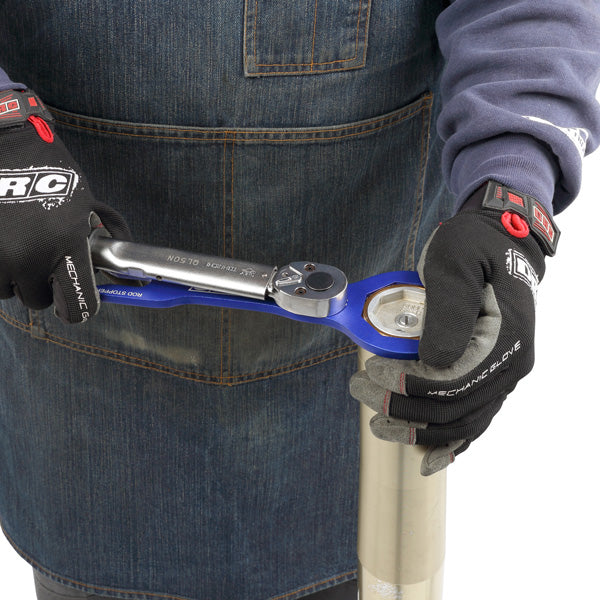

  - Provides a hole to attach a torque wrench for maintaining accurate setting.
  - D59-37-173 for WP conevalve is useful to adjust the spring initial adjuster.
  - Available for SHOWA, KYB, WP and WP kit suspension.
  * The front fork must be removed from the bike when servicing.

Image	Bike	Year	Front Fork	Part number

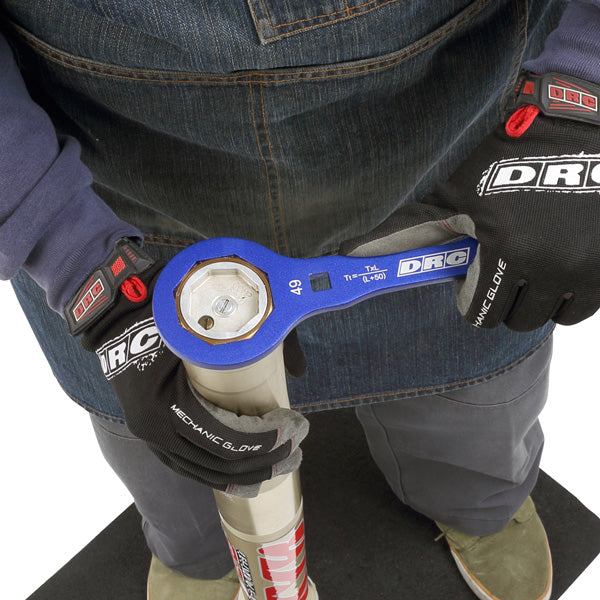

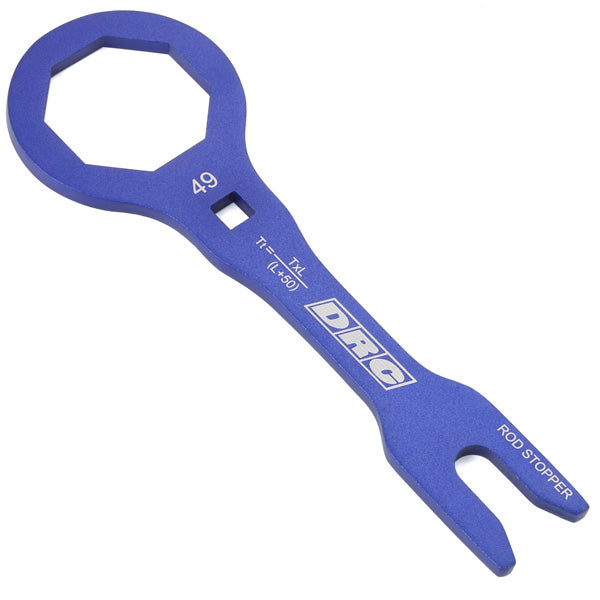

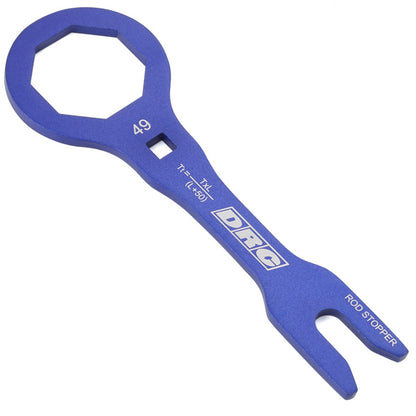

	CRF450R	09-14	KYB(49mm)	D59-37-170
	YZ125/250	06-23
	YZ250F	06-23
	YZ450F	06-23
	YZ125X	17-23
	YZ250X	16-23
	YZ250FX	15-23
	YZ450FX	16-23
	WR250F	15-23
	WR450F	13-23
	KX250	20-23
	KX250X	21-23
	KX450F	06-14
	RMZ250	16-22
	EC250	18-20
	EC300	18-20
	XC250	18-20
	XC300	18-20
	ENDURO GP250	18-20
	ENDURO GP300	18-20
	125SC FACTORY	19-20
	250SC FACTORY	19-20
	300SC FACTORY	19-20
	250SCF FACTORY	19-20
	300SCF FACTORY	19-20
	450SCF FACTORY	19-20
	500SCF FACTORY	19-20
	250SE FACTORY	19-22
	300SE FACTORY	19-22
	250SEF FACTORY	19-22
	300SEF FACTORY	19-22
	450SEF FACTORY	19-22
	500SEF FACTORY	19-20

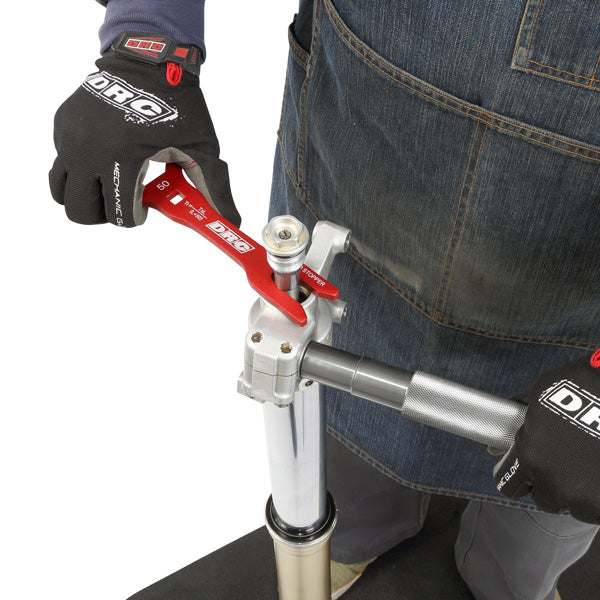

	CRF250R	04-23	SHOWA(50mm)	D59-37-171
	CRF450R	04-08
		17-23
	CRF250RX	19-23
	CRF450RX	17-22
	CRF250X	06-17
	CRF450X	05-22
	CRF450L	19-20
	CRF450RL	21-22
	KX250F	06-18
	KX250	19
	KX450F	15-18
	KX450	19-23
	KX450X	21-23
	RM125	06-08
	RM250	07-08
	RMZ250	07-15
	RMZ450	05-22
	RMX450Z	10-17
	DRZ400SM	05-17

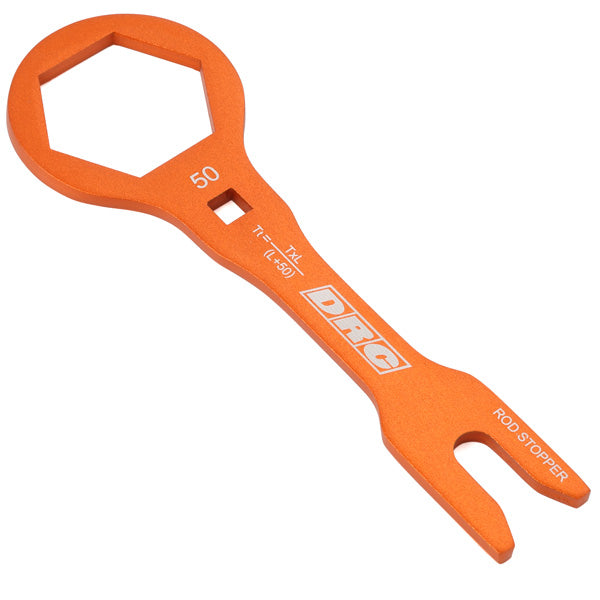

	125SX	07-23	WP(50mm)	D59-37-172
	150SX	09-22
	250SX	07-23
	250SX-F	07-23
	350SX-F	11-23
	450SX-F	07-23
	150/250/300EXC	17-23
	250-500EXC-F	17-23
	125/250/300XC	17-23
	250-450XC-F	17-23
	125-300XC-W	17-23
	FC250-450	17-23
	TC125/250	17-22
	FE250-501	17-23
	TE150-300	17-22
	FX350/450	17-23
	TX125/300	17-23
	MC125	21-23
	MC250	22-23
	MC250F	21-23
	MC350F	22-23
	MC450F	21-23
	EX250	22-23
	EX250F	21-23
	EX300	21-23
	EX350F	21-23
	EX450F	21-23
	EC250	21-23
	EC300	21-23
	EC250F	21-23
	EC350F	21-23

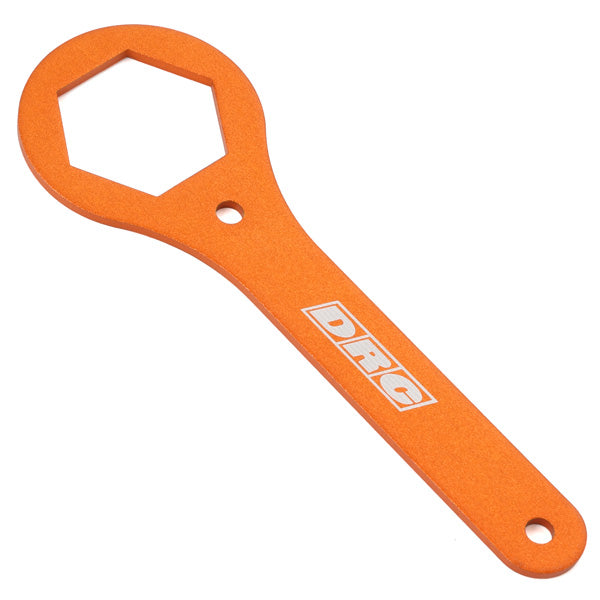

	WP MXMA4800 Conevalve		WP(35mm)	D59-37-173
