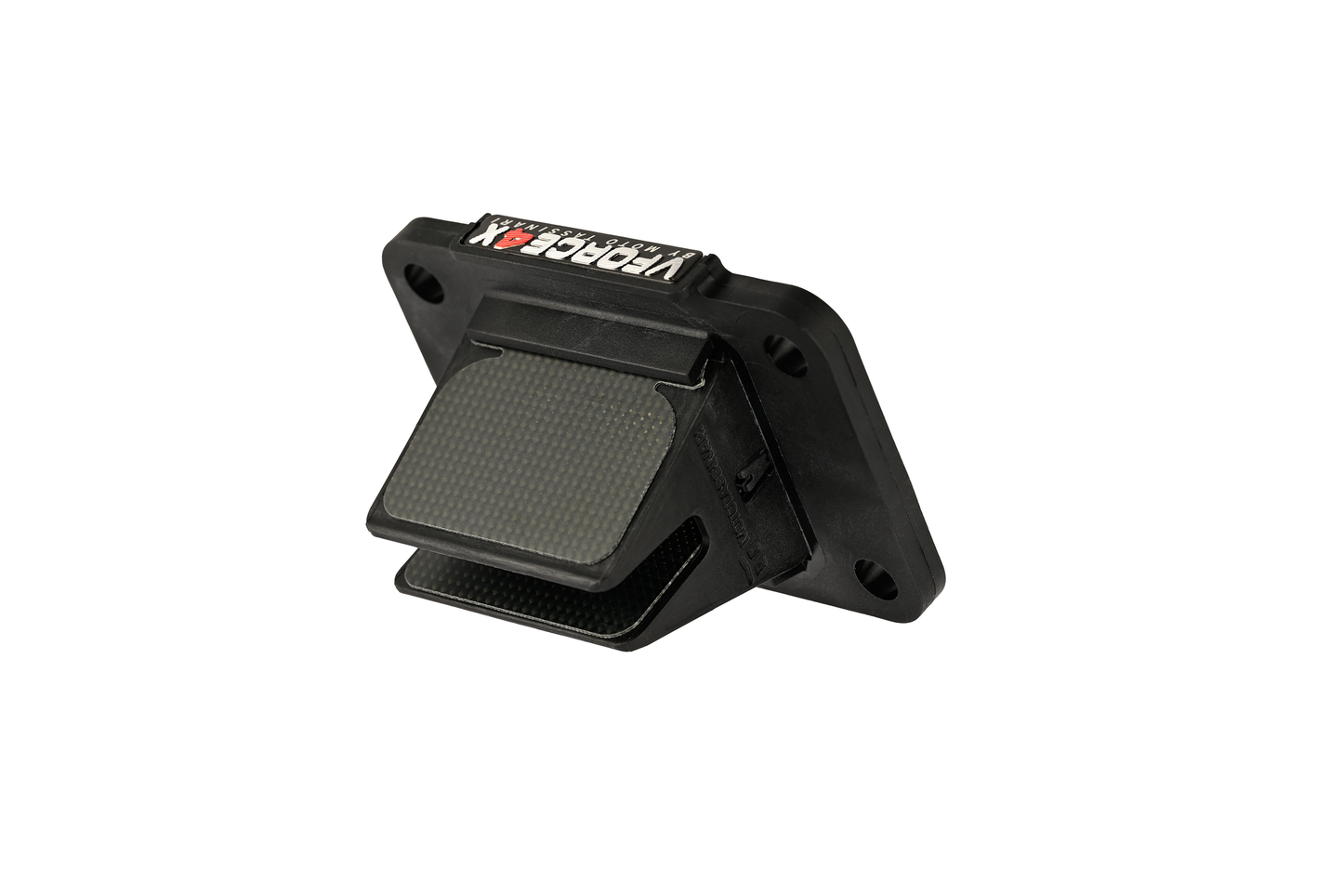

*NEW* KTM/HUSQVARNA 50/65 V-Force 4X Reed Valve System

NEW AND IMPROVED V-FORCE 4X REED VALVE FOR 50 and 65 Husky, KTM, and Gas Gas

Nope, we didn’t forget about the little guys! The all-new VFORCE4X V4X55 for all current GASGAS, Husqvarna and KTM 50cc and 65cc motocross models boost the horsepower throughout the mid to top and provides even more over rev than the already top performing VFORCE3, thanks to a new reed cage, air guide and reed petal combination.

V4X55 FITMENT:
GasGas MC50 Years: 2022-2025
GasGas MC65 Years: 2022-2025
Husqvarna TC50 Years: 2022-2025
Husqvarna TC65 Years: 2022-2025
KTM 65SX Years: 2009-2025
KTM 50SX Years: 2015-2025

The all-new VForce4X for the 50 and 65 KTM, Husqvarna, and GasGas has been designed to offer you exceptional durability and overcome the shortcomings of the stock reed valve system.

The unique design of the VForce reed valve system features double the reed tip surface over a conventional reed valve design. This has two major benefits: 1) The reed petals only travel half the distance as a conventional reed valve design to get the same airflow. 2) Because the reed petals only need to travel half the distance of that on a conventional reed valve design, there is a greater chance of them being fully opened as well as a better chance of sealing when they are "closed". A reed petal never truly "closes" in a classic sense, as it is always in movement. Consider this, an engine operating at 8,000 RPM results in a reed petal opening and closing 133 times in one second. This fact, sheds light on another VForce advantage. Since the petals are only traveling half the distance, they generally last longer are they receive less wear than the reed petals on a conventional reed valve design.

STANDARD VFORCE REED VALVE FEATURES

• Double the reed tip surface over a conventional reed valve design
• Increased bottom end, stronger mid-range and longer top-end
• Greater efficiency due to reduced reed petal travel
• More airflow means more horsepower
• Reduced reed petal wear
• Screw free design eliminates risk of screws going through motor
• Screw free design enables rapid reed petal changes

IMPROVED VFORCE4X FEATURES

• All-new reed petal resin system, carbon fiber and lay-up
• Pre-curved reed petal ensures better seal at tip
• Wider reed cage for maximum airflow
• Combined reed tip area increased by 10.5% resulting in increased total air flow
• Airfoil shape added to cage tip to increase air velocity from outer ports
• Long reed stops added to progressively slow petal tip velocity, for increased petal durability
• Reduced frontal area of central wing by 15.6% combined with a more aerodynamic shape

ALL-NEW VFORCE4X FEATURES

• Rubber overmodling on reed tip surface of cage to further enhance petal life
• All-new manifold, reed cage and air guide designed for the VFVorce4R

WHAT'S INCLUDED WHEN I PURCHASE THE VFORCE4R REED VALVE SYSTEM?

Moto Tassinari and VForce4R decals, detailed installation instructions, complete VForce4R reed valve system (including reed petals) and gasket.
