Zeta Anodized Colored Lowering Link

Zeta

  • $133.16
  • Save $5.83

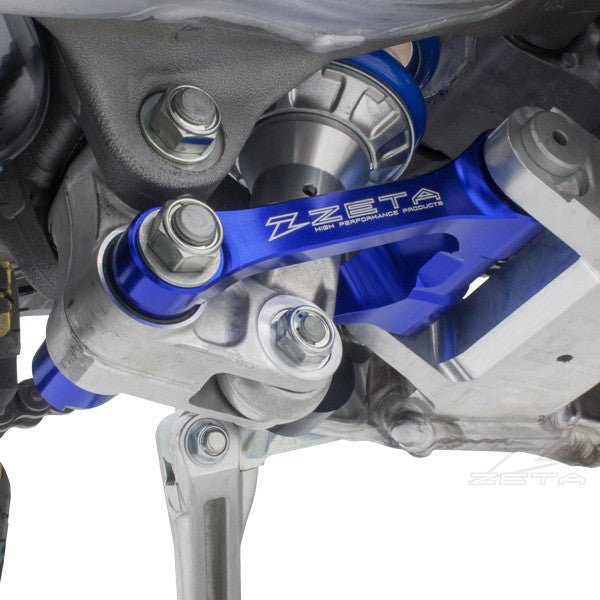

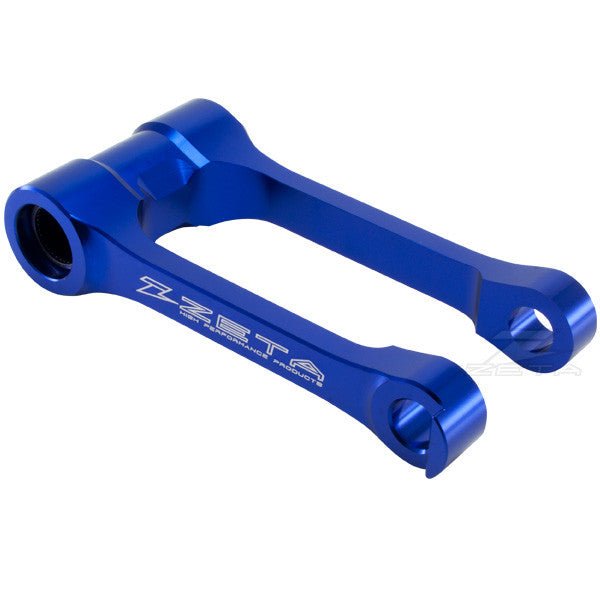

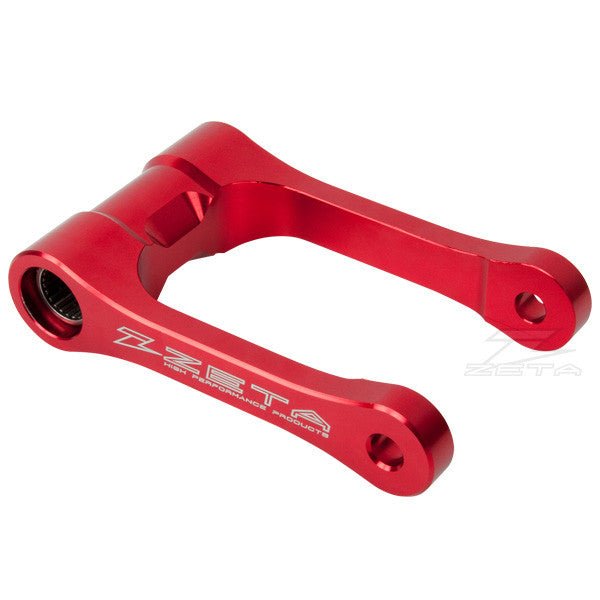

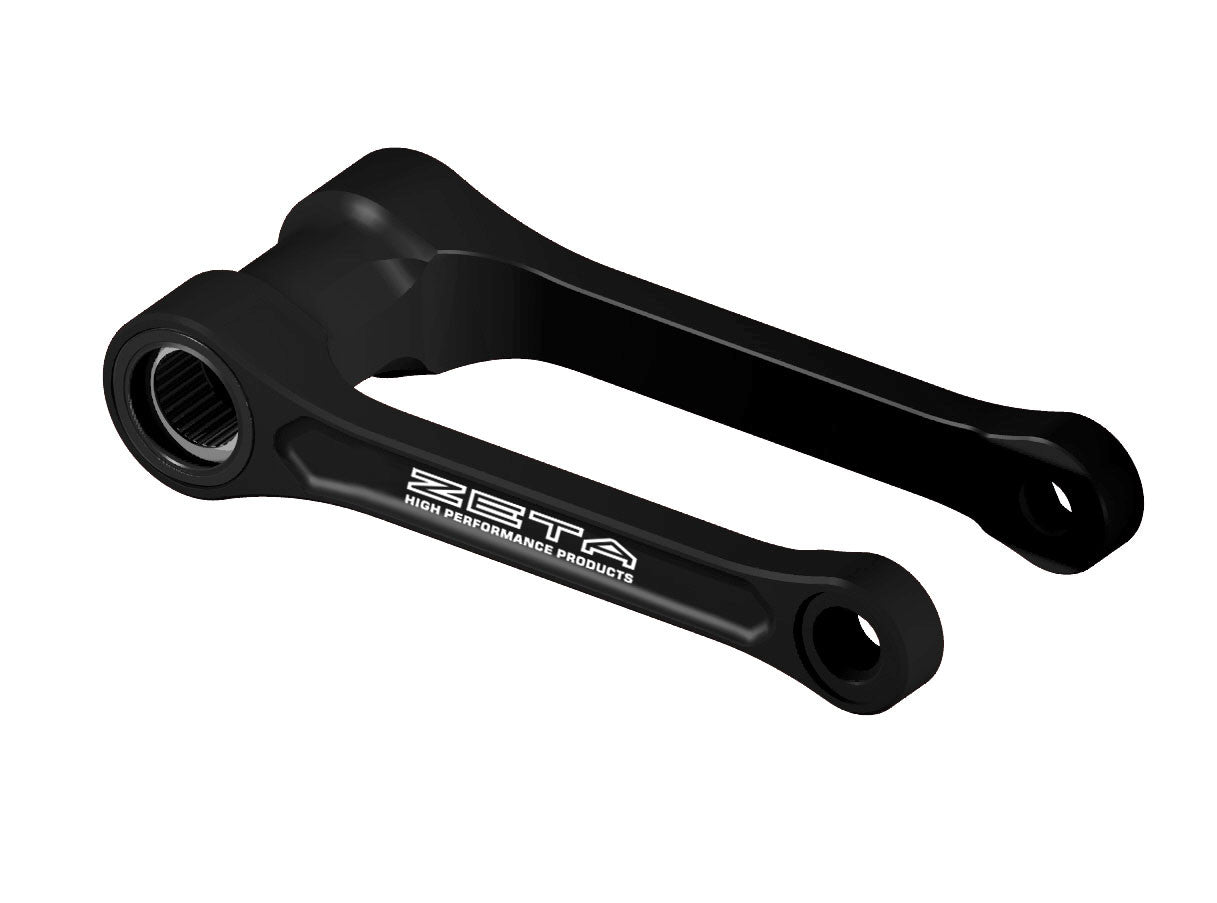

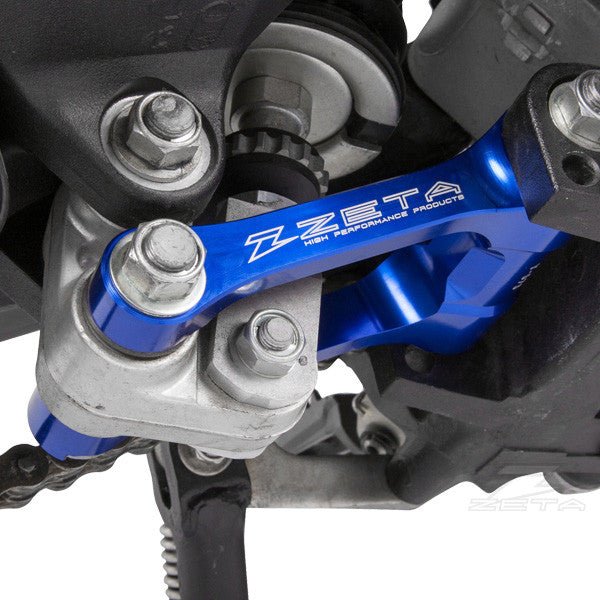

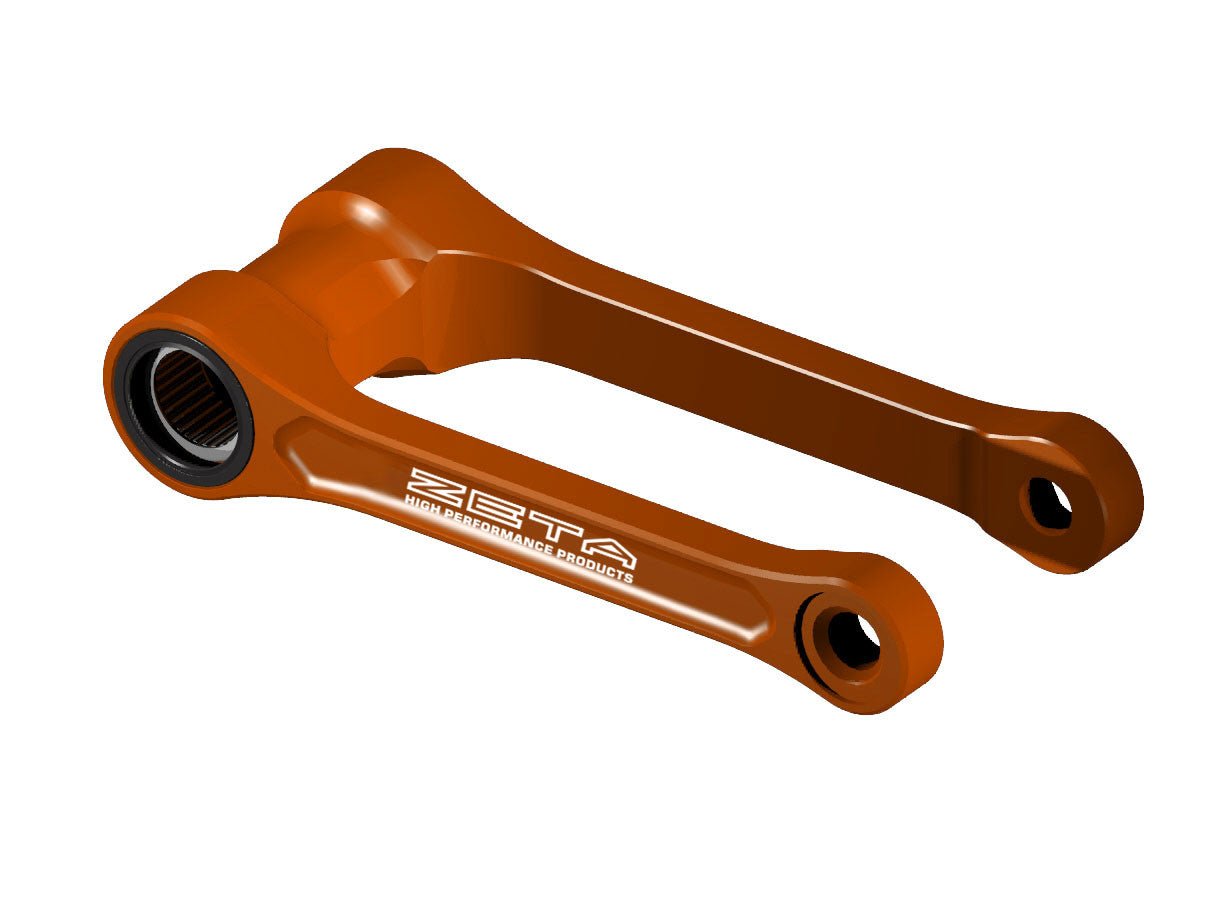

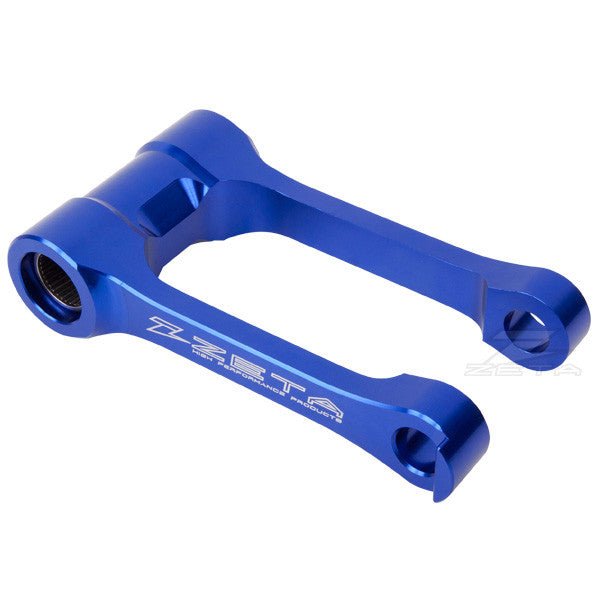

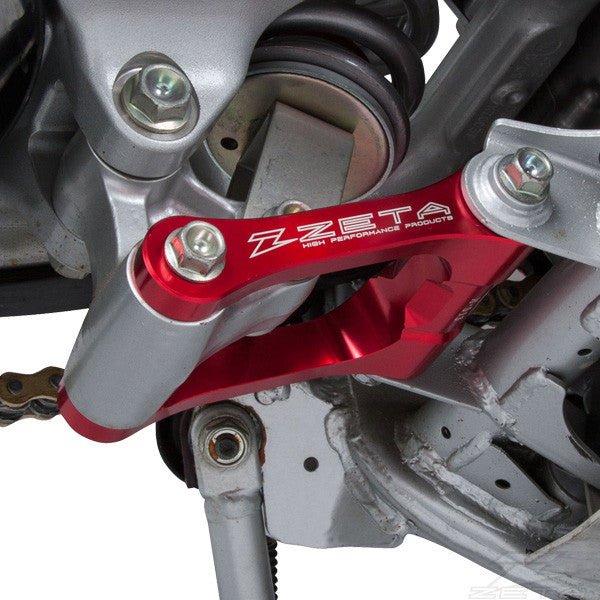

Motorcycle Anodized Lowering Link

Riding height is very important you need to be able to control the bike at all time.  So for those riders that find that their bikes are a little bit high, the Zeta Anodized Lowering Link are perfect replacements for your OEM linkage.  Lowering your center of gravity in some case gives you better handling and a more comfortable riding height.

Specifications:

- Improving ground touch.
- Able to lower with adjustable link. (Reference : About - 30 mm. Vary by models.)
- Bolt on design, only changing a stock link rod.
- 7000-series aluminum alloy, high level laser finish.

Check out these easy to find application charts for your bike.

www.zeta-racing.com/bikes/index.html


ZETA LOWERING LINK KIT



Lowering Link
Bike Year Adjustable LowDown (Fixed)
Black Red Blue Orange Black Red Blue Orange H-Blue
HONDA
CRF250R 14-17 - ZE56-01032 - - - ZE56-05032 - - -
18-21 - ZE56-01042 - - - ZE56-05042 - - -
22-24 - ZE56-01052 - - - ZE56-05052 - - -
CRF450R 16 - ZE56-01032 - - - ZE56-05032 - - -
17-20 - ZE56-01042 - - - ZE56-05042 - - -
21-24 - ZE56-01052 - - - ZE56-05052 - - -
CRF250RX 19-21 - ZE56-01042 - - - ZE56-05042 - - -
22-24 - ZE56-01052 - - - ZE56-05052 - - -
CRF450RX 17-20 - ZE56-01042 - - - ZE56-05042 - - -
21-24 - ZE56-01052 - - - ZE56-05052 - - -
CRF450L 19-20 - ZE56-01042 - - - ZE56-05042 - - -
CRF450RL 21-24 - ZE56-01042 - - - ZE56-05042 - - -
CRF250X 07-17 - - - - - ZE56-05062 - - -
CRF450X 08-17 - - - - - ZE56-05082 - - -
19-24 - ZE56-01042 - - - ZE56-05042 - - -
CRF250L 13-20 - ZE56-01132 - - - ZE56-05132 #1 - - -
CRF250L (MD47) 21-23   ZE56-01152       ZE56-05152
CRF250L(S) (MD47) 21-23   ZE56-01152       ZE56-05152
CRF250L LD 17-20 - ZE56-01132 - - - ZE56-05132 #1 - - -
CRF250RALLY 17-20 - - - - - ZE56-05182 - - -
CRF250RALLY (MD47) 21-23 - ZE56-01152 - - - ZE56-05152 - - -
CRF250RALLY(S) (MD47) 21-23 - ZE56-01152 - - - ZE56-05152 - - -
CRF250RALLY LD 17-20 - ZE56-01132 - - - ZE56-05132 #1 - - -
CRF300L 21-22 - ZE56-01152 - - - ZE56-05152 - - -
CRF300L RALLY 21-22 - ZE56-01152 - - - ZE56-05152 - - -
CRF1000L AFRICA TWIN 16-19 - ZE56-01162 - - - ZE56-05162 - - -
CRF1100L AFRICA TWIN/DCT 20-23 - ZE56-01162 - - - ZE56-05162 - - -
CRF1100L AFRICA TWIN ADV SPORTS ES/DCT 20-23 - ZE56-01162 - - - ZE56-05162 - - -
XL750 TRANSALP  23 - ZE56-01162 - - - ZE56-05162 - - -
YAMAHA
YZ85 94-24 - - - - - - ZE56-05606 - -
YZ125 06-24 - - ZE56-01616 - - - ZE56-05616 - -
YZ250 06-24 - - ZE56-01616 - - - ZE56-05616 - -
YZ250F 14-24 - - ZE56-01656 - - - ZE56-05656 - -
YZ450F 10-24 - - ZE56-01656 - - - ZE56-05656 - -
YZ125X 17-24 - - ZE56-01616 - - - ZE56-05616 - -
YZ250X 16-24 - - ZE56-01616 - - - ZE56-05616 - -
YZ250FX 15-24 - - ZE56-01656 - - - ZE56-05656 - -
YZ450FX 16-24 - - ZE56-01656 - - - ZE56-05656 - -
WR250F 07-14 - - - - - - ZE56-05636 - -
15-23 - - ZE56-01656 - - - ZE56-05656 - -
WR450F 07-15 - - - - - - ZE56-05636 - -
16-24 - - ZE56-01656 - - - ZE56-05656 - -
WR250R/X 07-17 - - ZE56-01736 - - - ZE56-05736 - -
KAWASAKI
KX85 #2 91-24 - - - - ZE56-05210 - - - -
KX100 16-21 - - - - ZE56-05210 - - - -
KX112 22-24 - - - - ZE56-05210 - - - -
KX250F 17-18 - - - - - - - - -
KX250 19-20 - - - - - - - - -
KX450F 17-18 ZE56-01270 - - - ZE56-05270 - - - -
KLX230 20-21 - - - - ZE56-05350 - - - -
KLX230SM 23 - - - - ZE56-05350 - - - -
SUZUKI
RM85 05-19 - - - - - ZE56-05412 - - -
RMZ250 13-18 - ZE56-01432 - - - ZE56-05432 - - -
RMZ450 13-17 - - - - - ZE56-05472 - - -
DRZ400/E/S/SM 00-17 - ZE56-01582 - - - ZE56-05582 - - -
KTM
125SX 16-22 - - - - - ZE56-05842 - ZE56-05843 ZE56-05849
23-24 - - - - - ZE56-05862 - ZE56-05863 ZE56-05869
150SX 16-22 - - - - - ZE56-05842 - ZE56-05843 ZE56-05849
250SX 17-22 - - - - - ZE56-05842 - ZE56-05843 ZE56-05849
23-24 - - - - - ZE56-05862 - ZE56-05863 ZE56-05869
250SX-F 16-22 - - - - - ZE56-05842 - ZE56-05843 ZE56-05849
23-24 - - - - - ZE56-05862 - ZE56-05863 ZE56-05869
350SX-F 16-22 - - - - - ZE56-05842 - ZE56-05843 ZE56-05849
23-24 - - - - - ZE56-05862 - ZE56-05863 ZE56-05869
450SX-F 16-22 - - - - - ZE56-05842 - ZE56-05843 ZE56-05849
23-24 - - - - - ZE56-05862 - ZE56-05863 ZE56-05869
125XC 21-22 - - - - - ZE56-05842 - ZE56-05843 ZE56-05849
23-24 - - - - - ZE56-05862 - ZE56-05863 ZE56-05869
250XC 17-22 - - - - - ZE56-05842 - ZE56-05843 ZE56-05849
23-24 - - - - - ZE56-05862 - ZE56-05863 ZE56-05869
300XC 17-22 - - - - - ZE56-05842 - ZE56-05843 ZE56-05849
23-24 - - - - - ZE56-05862 - ZE56-05863 ZE56-05869
250XC-F 16-22 - - - - - ZE56-05842 - ZE56-05843 ZE56-05849
23-24 - - - - - ZE56-05862 - ZE56-05863 ZE56-05869
350XC-F 16-22 - - - - - ZE56-05842 - ZE56-05843 ZE56-05849
23-24 - - - - - ZE56-05862 - ZE56-05863 ZE56-05869
450XC-F 16-22 - - - - - ZE56-05842 - ZE56-05843 ZE56-05849
23-24 - - - - - ZE56-05862 - ZE56-05863 ZE56-05869
HUSQVARNA
TC125 16-22 - - - - - ZE56-05842 - ZE56-05843 ZE56-05849
TC250 17-22 - - - - - ZE56-05842 - ZE56-05843 ZE56-05849
FC250 16-22 - - - - - ZE56-05842 - ZE56-05843 ZE56-05849
FC350 16-22 - - - - - ZE56-05842 - ZE56-05843 ZE56-05849
FC450
16-22 - - - - - ZE56-05842 - ZE56-05843 ZE56-05849
TE150 17-19 - - - - - - - - ZE56-05859
20-23 - - - - - ZE56-05842 - ZE56-05843 ZE56-05849
24 - - - - - ZE56-05862 - ZE56-05863 ZE56-05869
TE250 17-19 - - - - - - - - ZE56-05859
20-23 - - - - - ZE56-05842 - ZE56-05843 ZE56-05849
24 - - - - - ZE56-05862 - ZE56-05863 ZE56-05869
TE300
17-19 - - - - - - - - ZE56-05859
20-23 - - - - - ZE56-05842 - ZE56-05843 ZE56-05849
24 - - - - - ZE56-05862 - ZE56-05863 ZE56-05869
FE250 17-19 - - - - - - - - ZE56-05859
20-23 - - - - - ZE56-05842 - ZE56-05843 ZE56-05849
24 - - - - - ZE56-05862 - ZE56-05863 ZE56-05869
FE350
17-19 - - - - - - - - ZE56-05859
20-23 - - - - - ZE56-05842 - ZE56-05843 ZE56-05849
24 - - - - - ZE56-05862 - ZE56-05863 ZE56-05869
FE450 17-19 - - - - - - - - ZE56-05859
20-23 - - - - - ZE56-05842 - ZE56-05843 ZE56-05849
24 - - - - - ZE56-05862 - ZE56-05863 ZE56-05869
FE501 17-19 - - - - - - - - ZE56-05859
20-23 - - - - - ZE56-05842 - ZE56-05843 ZE56-05849
24 - - - - - ZE56-05862 - ZE56-05863 ZE56-05869
TX125 17-18 - - - - - - - - ZE56-05859
TX300 17-22 - - - - - ZE56-05842 - ZE56-05843 ZE56-05849
23-24 - - - - - ZE56-05862 - ZE56-05863 ZE56-05869
FX350 17-22 - - - - - - - - ZE56-05849
23-24 - - - - - ZE56-05862 - ZE56-05863 ZE56-05869
FX450 17-22 - - - - - ZE56-05842 - ZE56-05843 ZE56-05849
23-24 - - - - - ZE56-05862 - ZE56-05863 ZE56-05869
GASGAS
MC125 21-23 - - - - - ZE56-05842 - ZE56-05843 ZE56-05849
24 - - - - - ZE56-05862 - ZE56-05863 ZE56-05869
MC250 22-23 - - - - - ZE56-05842 - ZE56-05843 ZE56-05849
24 - - - - - ZE56-05862 - ZE56-05863 ZE56-05869
MC250F 21-23 - - - - - ZE56-05842 - ZE56-05843 ZE56-05849
24 - - - - - ZE56-05862 - ZE56-05863 ZE56-05869
MC350F 22-23 - - - - - ZE56-05842 - ZE56-05843 ZE56-05849
24 - - - - - ZE56-05862 - ZE56-05863 ZE56-05869
MC450F 21-23 - - - - - ZE56-05842 - ZE56-05843 ZE56-05849
24 - - - - - ZE56-05862 - ZE56-05863 ZE56-05869
EX250 22-23 - - - - - ZE56-05842 - ZE56-05843 ZE56-05849
24 - - - - - ZE56-05862 - ZE56-05863 ZE56-05869
EX250F 21-23 - - - - - ZE56-05842 - ZE56-05843 ZE56-05849
24 - - - - - ZE56-05862 - ZE56-05863 ZE56-05869
EX300
21-23 - - - - - ZE56-05842 - ZE56-05843 ZE56-05849
24 - - - - - ZE56-05862 - ZE56-05863 ZE56-05869
EX350F 21-23 - - - - - ZE56-05842 - ZE56-05843 ZE56-05849
24 - - - - - ZE56-05862 - ZE56-05863 ZE56-05869
EX450F 21-23 - - - - - ZE56-05842 - ZE56-05843 ZE56-05849
24 - - - - - ZE56-05862 - ZE56-05863 ZE56-05869
EC250 21-23 - - - - - ZE56-05842 - ZE56-05843 ZE56-05849
24 - - - - - ZE56-05862 - ZE56-05863 ZE56-05869
EC300 21-23 - - - - - ZE56-05842 - ZE56-05843 ZE56-05849
24 - - - - - ZE56-05862 - ZE56-05863 ZE56-05869
EC250F 21-23 - - - - - ZE56-05842 - ZE56-05843 ZE56-05849
24 - - - - - ZE56-05862 - ZE56-05863 ZE56-05869
EC350F 21-23 - - - - - ZE56-05842 - ZE56-05843 ZE56-05849
24 - - - - - ZE56-05862 - ZE56-05863 ZE56-05869

#1 Bearing dust seal does not come with this kit, reuse stock dust seal or purchase new dust seals.

#2 KX85 does not include bearings and seals. Please prepare stock products diverted or separately.
