Zeta Carbon Fiber Fork Wrap Protectors
Zeta Carbon Fiber Fork Wrap Protectors
Regular price
$50.39 USD
Regular price
$55.99 USD
Sale price
$50.39 USD
Unit price
/
per

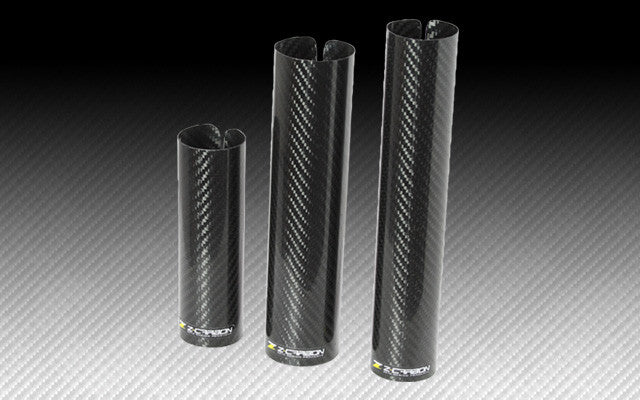

- Carbon front fork wrap for dirt bikes.
- Made of aircraft grade durable dry carbon fiber.

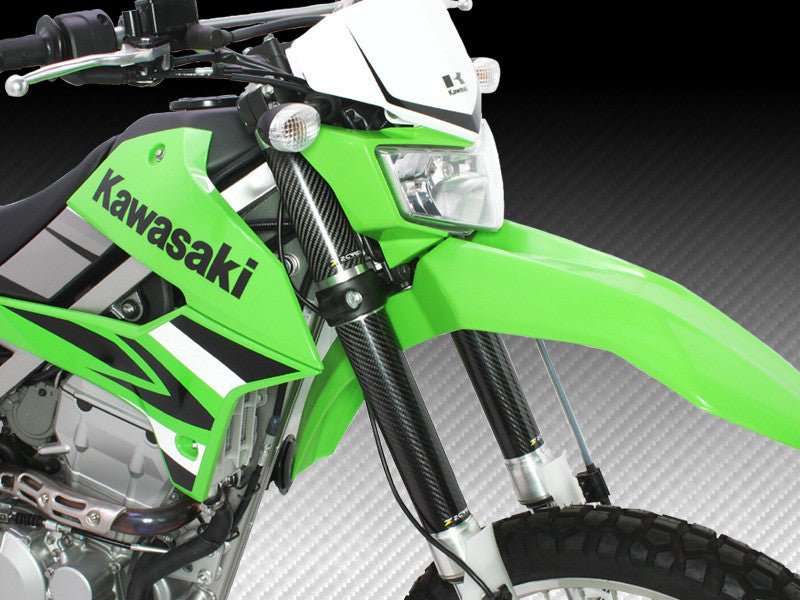

- Protect your front fork outer tube from brush and water during your ride.
- Easy to install, just fit on front forks.
- Lower and upper fork guards sold separately.
Check out these easy to find application charts for your bike.
www.zeta-racing.com/bikes/index.html
*Kits come in pairs
- Please measure each length shown in above picture and refer below list for your fork wrap parts numbers.
*Please see application chart below
*Part numbers need to be added to cart separately
Z-CARBON FORK WRAPS
2016.10 UPDATE
Fork Wraps size chart
Discription | Part number | Size(mm) | |
Length | Diameter | ||
UPPER | ZC35-4312 | 140 | 45 |
ZC35-4314 | 164 | 45 | |
ZC35-4332 | 160 | 52 | |
ZC35-4334 | 178 | 52 |
Discription | Part number | Size(mm) | |
Length | Diameter | ||
LOWER | ZC35-4316 | 220 | 45 |
ZC35-4318 | 240 | 45 | |
ZC35-4336 | 225 | 52 | |
ZC35-4338 | 248 | 52 |
Bike | Year | UPR | LWR |
HONDA | |||
CR85R | 03-07 | ZC35-4312 | ZC35-4318 |
CRF150R | 07-17 | ZC35-4312 | ZC35-4318 |
CRF250R/450R | 02-17 | ZC35-4334 | ZC35-4338 |
CRF450RX | 17 | ZC35-4334 | ZC35-4338 |
CRF250X/450X | 04-17 | ZC35-4334 | ZC35-4338 |
XR250/MOTARD | 03-07 | ZC35-4332 | ZC35-4336 |
CRF250L/M | 12-16 | ZC35-4332 | ZC35-4336 |
YAMAHA | |||
YZ85 | 02-17 | ZC35-4312 | ZC35-4318 |
YZ125/250 | 08-17 | ZC35-4334 | ZC35-4338 |
YZ250F/450F | 08-17 | ZC35-4334 | ZC35-4338 |
YZ125X | 17 | ZC35-4334 | ZC35-4338 |
YZ250X | 16-17 | ZC35-4334 | ZC35-4338 |
YZ250FX | 15-17 | ZC35-4334 | ZC35-4338 |
YZ450FX | 16-17 | ZC35-4334 | ZC35-4338 |
WR250F | 07-16 | ZC35-4334 | ZC35-4338 |
WR450F | 07-16 | ZC35-4334 | ZC35-4338 |
WR250R/X | 07-17 | ZC35-4332 | ZC35-4336 |
KAWASAKI | |||
KX85/100 | 01-17 | ZC35-4312 | ZC35-4316 |
KX250F | 07-17 | ZC35-4334 | ZC35-4336 |
KX450F | 07-17 | ZC35-4334 | ZC35-4338 |
KLX450R | 08-15 | ZC35-4334 | ZC35-4338 |
KLX250/D-TRACKER | 98-16 | ZC35-4332 | ZC35-4336 |
SUZUKI | |||
RM85 | 02-16 | ZC35-4314 | ZC35-4318 |
RM-Z250 | 07-17 | ZC35-4332 | ZC35-4338 |
RM-Z450 | 08-17 | ZC35-4332 | ZC35-4338 |
RMX450Z | 10-15 | ZC35-4332 | ZC35-4338 |
250SB | 02-06 | ZC35-4332 | ZC35-4336 |
DR-Z400SM | 04-16 | ZC35-4332 | ZC35-4336 |
KTM | |||
85SX | 03-09 | ZC35-4314 | ZC35-4316 |
125-450SX/SXF/EXC/EXCF/XCF/XCW | 08-17 | ZC35-4332 | ZC35-4338 |
HUSQVARNA | |||
FC/FE 250-450 | 14-17 | ZC35-4332 | ZC35-4338 |
