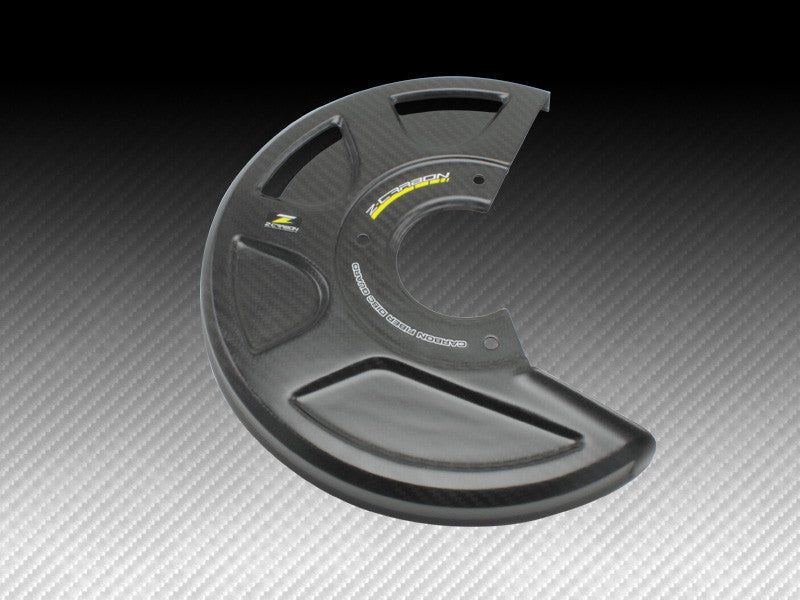

Zeta Carbon Fiber Front Disc Guard
Zeta Carbon Fiber Front Disc Guard
Light weight carbon fiber brake disc guard.

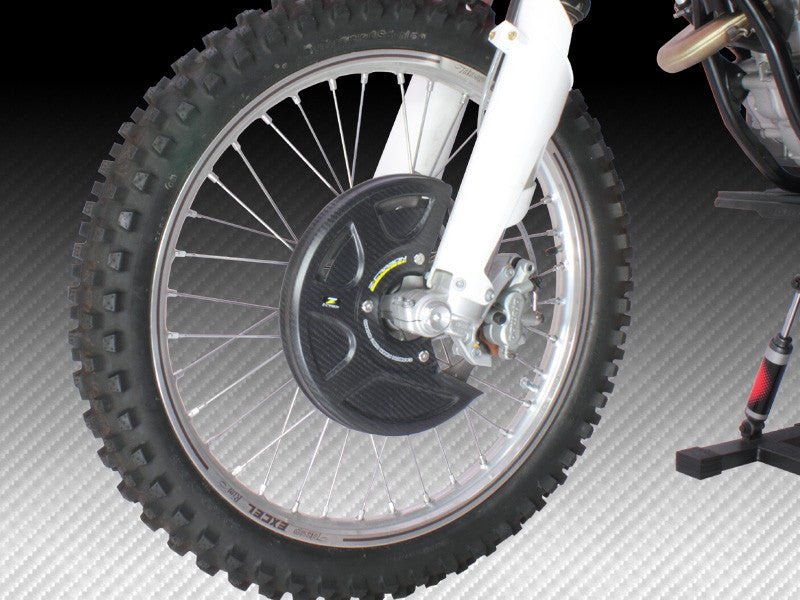

- Protect your front brake disc from rocks, brush and debris during your ride.
- Prevents mud and dirt from getting on the disc, so your brakes function properly in a muddy race.
- Slim and light weight design will not affect the handling of the bike.
- Disc guard and bracket sold separately to allow for a larger range of combinations.
*Model specific mounting kit required for installation.
*Modification may be needed for some models.
Check out these easy to find application charts for your bike.
www.zeta-racing.com/bikes/index.html
Part Number | Descripton |
ZC35-1201 | Up to 240mm brake disc |
ZC35-1202 | Up to 270mm brake disc |

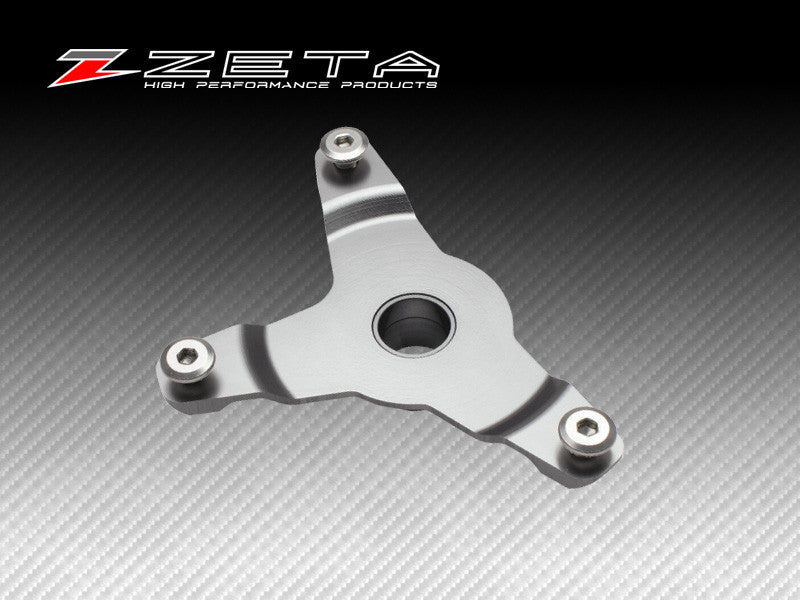

ZETA F-DISC GUARD MOUNTING KIT
SPECIFICATIONS:
- Model specific mounting kit. (Required for installation)
- Mount bracket is integrated with wheel spacer.
*Please see application chart below
*Part numbers need to be added separately
ZETA FRONT DISC MOUNTING KIT
2016.10 UPDATE
Bike | Year | Part number | |
Mounting kit | Disc guard | ||
HONDA | |||
CRF150R | 07-16 | ZE52-1100 | ZC35-1201 |
CR125R/250R | 04-07 | ZE52-1120 | ZC35-1202 |
CRF250R | 04-17 | ZE52-1120 | ZC35-1202 |
CRF450R | 04-17 | ZE52-1120 | ZC35-1202 |
CRF450RX | 17 | ZE52-1120 | ZC35-1202 |
CRF250X/450X | 04-17 | ZE52-1120 | ZC35-1202 |
CRF250L/M | 12-16 | ZE52-1180 | ZC35-1202 |
YAMAHA | |||
YZ125/250 | 08-17 | ZE52-1420 | ZC35-1202 |
YZ250F | 07-13 | ZE52-1420 | ZC35-1202 |
14-17 | ZE52-1430 | ZC35-1202 | |
YZ450F | 07-13 | ZE52-1420 | ZC35-1202 |
14-17 | ZE52-1430 | ZC35-1202 | |
YZ125X | 17 | ZE52-1420 | ZC35-1202 |
YZ250X | 16-17 | ZE52-1420 | ZC35-1202 |
YZ250FX | 15-17 | ZE52-1430 | ZC35-1202 |
YZ450FX | 16-17 | ZE52-1430 | ZC35-1202 |
WR250F | 06-16 | ZE52-1420 | ZC35-1202 |
WR450F | 06-16 | ZE52-1420 | ZC35-1202 |
WR250R | 07-17 | ZE52-1470 | ZC35-1202 |
WR250X | 07-17 | ZE52-1470 | - |
KAWASAKI | |||
KX125/250 | 06-08 | ZE52-1220 | ZC35-1202 |
KX250F | 06-17 | ZE52-1220 | ZC35-1202 |
KX450F | 06-17 | ZE52-1220 | ZC35-1202 |
KLX450R | 08-15 | ZE52-1220 | ZC35-1202 |
KLX125 | 10-16 | ZE52-1280 | ZC35-1201 |
KLX150S | 09-13 | ZE52-1280 | ZC35-1201 |
KLX250 | 08-16 | ZE52-1270 | ZC35-1202 |
D-TRACKER/X | 08-16 | ZE52-1270 | - |
SUZUKI | |||
RM85 | 02-16 | ZE52-1300 | ZC35-1201 |
RMZ250 | 07-17 | ZE52-1320 | ZC35-1202 |
RMZ450 | 05-17 | ZE52-1320 | ZC35-1202 |
RMX450Z | 10-16 | ZE52-1320 | ZC35-1202 |
DRZ400SM | 04-16 | ZE52-1380 | - |
KTM | |||
85/105 SX/XC | 03-11 | ZE52-1500 | ZC35-1201 |
125-530SX/SX-F/XC/XC-F | 03-14 | ZE52-1520 | ZC35-1202 |
15-17 | ZE52-1530 | ZC35-1202 | |
125-530EXC/EXC-F | 03-15 | ZE52-1520 | ZC35-1202 |
16-17 | ZE52-1530 | ZC35-1202 | |
450-525SMR | 04-10 | ZE52-1520 | - |
HUSQVARNA | |||
CR/WR 125-300 | 09-11 | ZE52-1610 | ZC35-1202 |
TC/TE 250-511 | 09-11 | ZE52-1610 | ZC35-1202 |
SM 450-510 | 09 | ZE52-1610 | - |
TC/FC 125-450 | 14 | ZE52-1520 | ZC35-1202 |
15-17 | ZE52-1530 | ZC35-1202 | |
TE/FE 125-501 | 14-15 | ZE52-1520 | ZC35-1202 |
16-17 | ZE52-1530 | ZC35-1202 | |
TX/FX125-450 | 17 | ZE52-1530 | ZC35-1202 |
