Zeta Light weight Colored Anodized Aluminum Magnetic Oil Drain Bolt
Zeta Light weight Colored Anodized Aluminum Magnetic Oil Drain Bolt
Regular price
$8.06 USD
Regular price
$8.95 USD
Sale price
$8.06 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

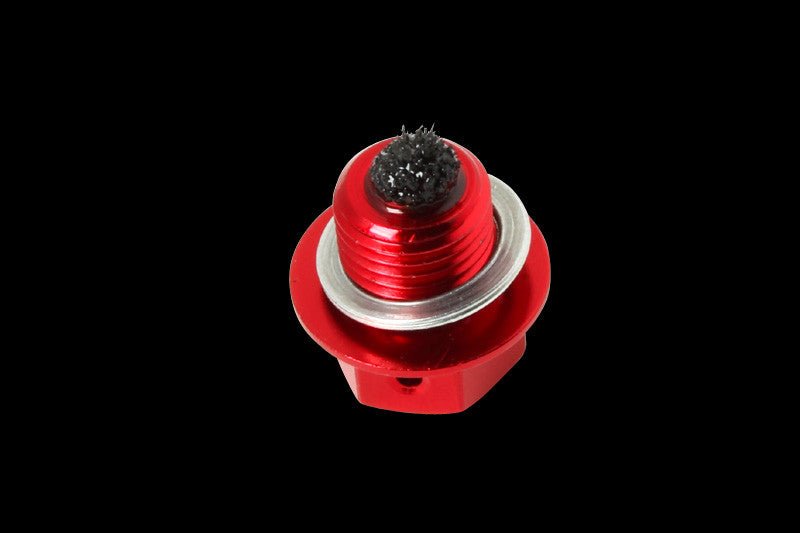

- Magnetic drain bolts designed to pick up excess bits of metal in your engine oil.
- Made of A7009-T6 aluminum. Light weight design.

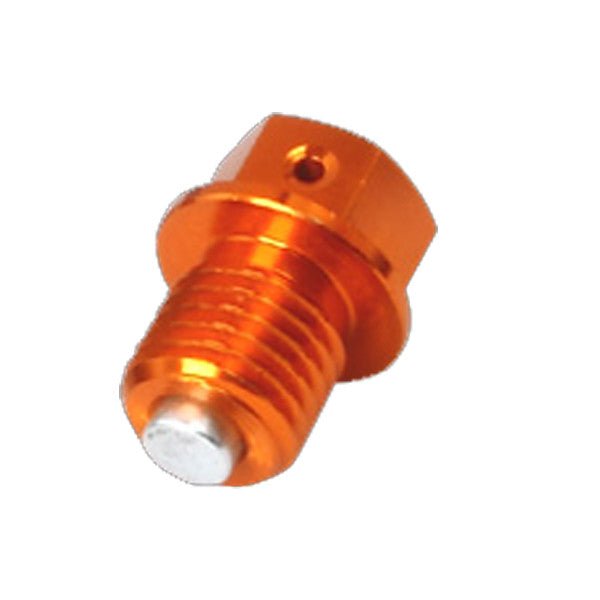

- Press fit magnet on the drain plugs.

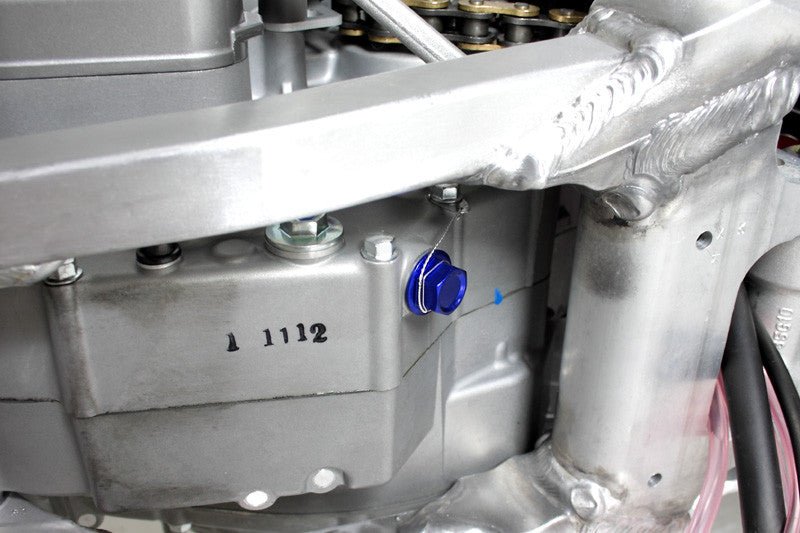

- Includes safety wire holes to prevent mispaced part.

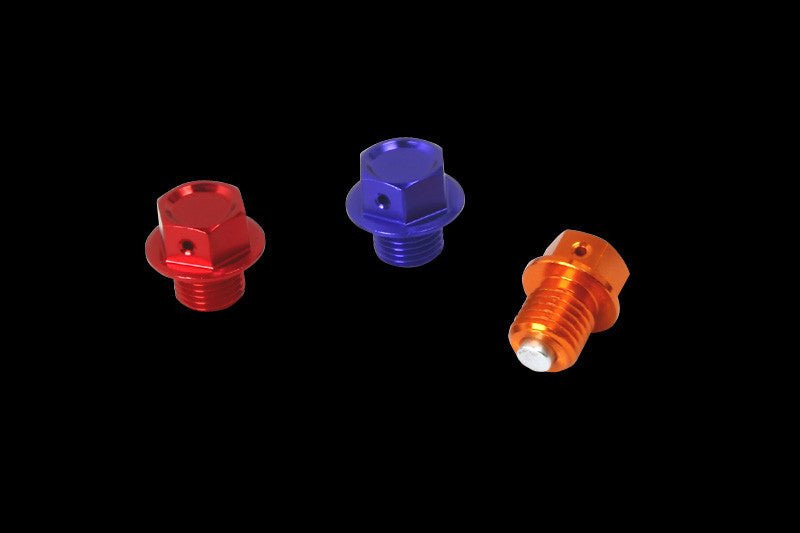

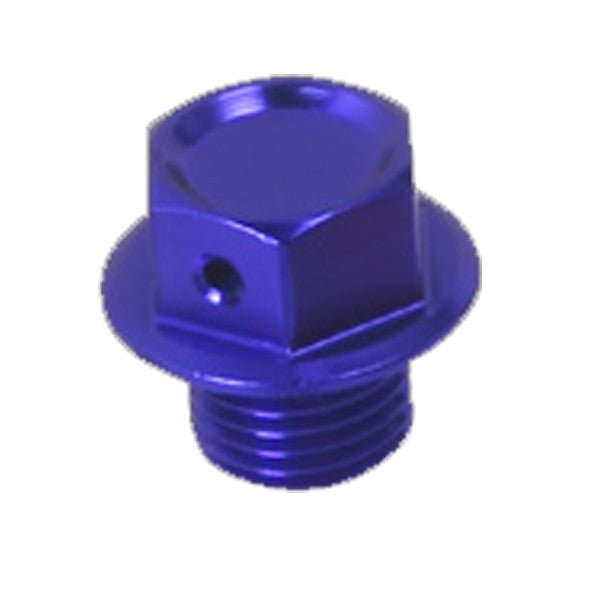

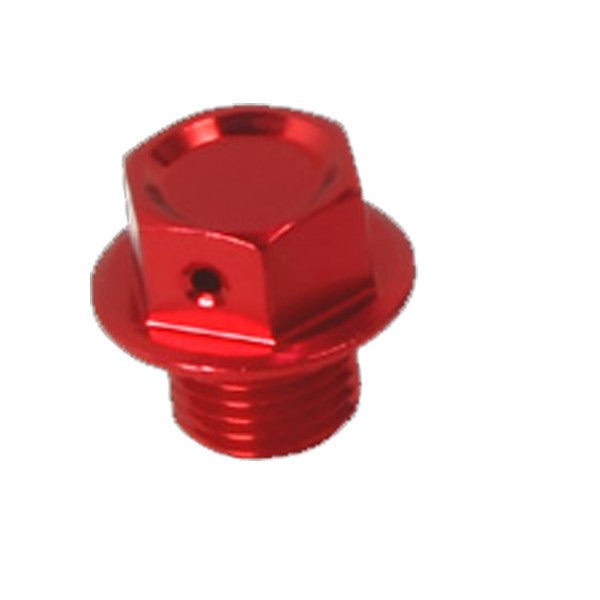

- Available in blue, red and orange anodized colors.
Check out these easy to find application charts for your bike.
www.zeta-racing.com/bikes/index.html
*Please see application charge below
ZETA MAGNETIC DRAIN BOLT
2016.10.13 UPDATED
| Bike | Year | Size | Color | ||
| Blue | Red | Orange | |||
| HONDA | |||||
| XR50R/CRF50F | 99-17 | M12X15-P1.5 | ZE58-1522 | ZE58-1523 | - |
| CR85R/RII | 03-07 | M12X15-P1.5 | ZE58-1522 | ZE58-1523 | - |
| CR125R/250R | 02-07 | M12X15-P1.5 | ZE58-1522 | ZE58-1523 | - |
| CRM250R | 89-96 | M12X15-P1.5 | ZE58-1522 | ZE58-1523 | - |
| CRM250AR | 97-00 | M12X15-P1.5 | ZE58-1522 | ZE58-1523 | - |
| CRF250L/M | 12-16 | M12X15-P1.5 | ZE58-1522 | ZE58-1523 | - |
| CRF1000L | 16 | M12X15-P1.5 | ZE58-1522 | ZE58-1523 | - |
| XR250/BAJA | 95-07 | M12X15-P1.5 | ZE58-1522 | ZE58-1523 | - |
| XR250MOTARD | 03-07 | M12X15-P1.5 | ZE58-1522 | ZE58-1523 | - |
| XR400MOTARD | 05-08 | M12X15-P1.5 | ZE58-1522 | ZE58-1523 | - |
| YAMAHA | |||||
| YZ125 | 05-17 | M10X15-P1.25 | ZE58-1222 | ZE58-1223 | - |
| YZ250 | 97-17 | M12X15-P1.5 | ZE58-1522 | ZE58-1523 | - |
| YZ250F | 01-17 | M10X15-P1.25 | ZE58-1222 | ZE58-1223 | - |
| YZ450F | 03-09 | M10X15-P1.25 | ZE58-1222 | ZE58-1223 | - |
| 14-17 | M10X15-P1.25 | ZE58-1222 | ZE58-1223 | - | |
| YZ125X | 17 | M10X15-P1.25 | ZE58-1222 | ZE58-1223 | - |
| YZ250X | 16-17 | M12X15-P1.5 | ZE58-1522 | ZE58-1523 | - |
| YZ250FX | 15-17 | M10X15-P1.25 | ZE58-1222 | ZE58-1223 | - |
| YZ450FX | 16-17 | M10X15-P1.25 | ZE58-1222 | ZE58-1223 | - |
| WR250F | 01-16 | M10X15-P1.25 | ZE58-1222 | ZE58-1223 | - |
| WR450F | 04-11 | M10X15-P1.25 | ZE58-1222 | ZE58-1223 | - |
| 16 | M10X15-P1.25 | ZE58-1222 | ZE58-1223 | - | |
| TRICKER | 04-16 | M12X15-P1.5 | ZE58-1522 | ZE58-1523 | - |
| SEROW250 | 05-16 | M12X15-P1.5 | ZE58-1522 | ZE58-1523 | - |
| XT250X | 06-16 | M12X15-P1.5 | ZE58-1522 | ZE58-1523 | - |
| WR250R/X | 07-17 | M12X15-P1.5 | ZE58-1522 | ZE58-1523 | - |
| KAWASAKI | |||||
| KX65 | 00-17 | M10X15-P1.5 | ZE58-1322 | ZE58-1323 | - |
| KX85/100 | 01-17 | M10X15-P1.5 | ZE58-1322 | ZE58-1323 | - |
| KX125 | 96-08 | M10X15-P1.5 | ZE58-1322 | ZE58-1323 | - |
| KX250 | 96-08 | M10X15-P1.5 | ZE58-1322 | ZE58-1323 | - |
| KX250F | 04-17 | M10X15-P1.5 | ZE58-1322 | ZE58-1323 | - |
| KX450F | 06-15 | M10X22-P1.5 | ZE58-1342 | ZE58-1343 | - |
| 16-17 | M10X15-P1.5 | ZE58-1322 | ZE58-1323 | - | |
| KLX110/L | 02-17 | M12X15-P1.5 | ZE58-1522 | ZE58-1523 | - |
| KLX450R | 08-09 | M10X22-P1.5 | ZE58-1342 | ZE58-1343 | - |
| KLX125,D-TRACKER125 | 10-16 | M12X15-P1.5 | ZE58-1522 | ZE58-1523 | - |
| KLX150S | 09-13 | M12X15-P1.5 | ZE58-1522 | ZE58-1523 | - |
| KLX250/D-TRACKER | 98-16 | M10X15-P1.5 | ZE58-1322 | ZE58-1323 | - |
| SUZUKI | |||||
| RMZ250 | 07-17 | M12X10-P1.25 | ZE58-1412 | ZE58-1413 | - |
| 250SB | 02-06 | M10X15-P1.5 | ZE58-1322 | ZE58-1323 | - |
| DRZ400S/E/SM(CRANKCASE) | 00-16 | M12X10-P1.25 | ZE58-1412 | ZE58-1413 | - |
| DRZ400S/E/SM(FRAME) | 00-16 | M10X15-P1.25 | ZE58-1222 | ZE58-1223 | - |
| KTM | |||||
| 125-530 SX/SX-F/EXC/EXC-F/EXC-R /XC/XC-W/XC-F |
- | M12X12-P1.5* | - | - | ZE58-1517 |
| 450-690 SMR/SMC/Enduro/R /Adventure/Supermoto/R/Duke |
|||||
| ATV SX/XC | |||||
| FREERIDE250R | 14-17 | ||||
| FREERIDE350 | 12-17 | ||||
| HUSQVARNA | |||||
| TC125/250 | 14-17 | M12X12-P1.5* | ZE58-1512 | - | - |
| TE125-300 | 14-17 | ||||
| FC250-450 | 14-17 | ||||
| FE250-501 | 14-17 | ||||
| TX/FX125-450 | 17 | ||||
*Verify stock bolt size before purchase
